Quick Details

  • Condition: New
  • Type: Paper Cutting Machine
  • Computerized: Yes
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: HX
  • Model Number: HX-XPZ-1575
  • Voltage: 220V/380V
  • Power(W): 4kw
  • Dimension(L*W*H): 6200x2600x1800mm
  • Weight: 3t, 3.0T
  • Certification: CE Certificate
  • Warranty: Life Technician Support, Lifetime technical support
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Jumbo roll max width: 1750mm
  • Maximum material diameter: 1100mm
  • Maximum rewinding diameter: 300mm
  • Power: 4kw
  • Size: 6200x2600x1800mm

Packaging & Delivery

Packaging Details: High Speed Automatic Maxi Roll Paper Rewinding Machine .Spray the anti-rusted oil first and then wrapped the plastic bag last packaging wooden case.
Delivery Detail: 40-60days

High Speed Automatic Maxi Roll Paper Rewinding Machine



Jumbo roll slitting and rewinding toilet paper machine is designed to slit material paper into big roll reel shape toilet paper, which mainly used for public place, such as the hotel, restaurant.



Function and Features

1. Use of inflatable shaft winding, so that accurate positioning is simple paper tube

Edge pressing system:

2.  Edge pressing system: Using steel on steel blank pressing, independent cylinder adjustment, to facilitate adjustment to each layer of paper is not hierarchical

3. Horizontal style unwind stander, pneumatic paper loading unit, dispense artificially handling

4. Deliver paper with pneumatic wide belt, with separate tension control device in each roll of raw paper.

5. Use of traction before and after the point of switch base paper, the operation is more simple and safe



The Main Technical Parameters

Production Speed

180-200m/min

Maximum Material Width

1750mm

Maximum material diameter

1100mm

Maximum rewinding diameter

300mm

Equipment, electric power

4KW

Dimensions

6200X2600X1800mm

Weight

3.0T

High Speed Automatic Maxi Roll Paper Rewinding Machine

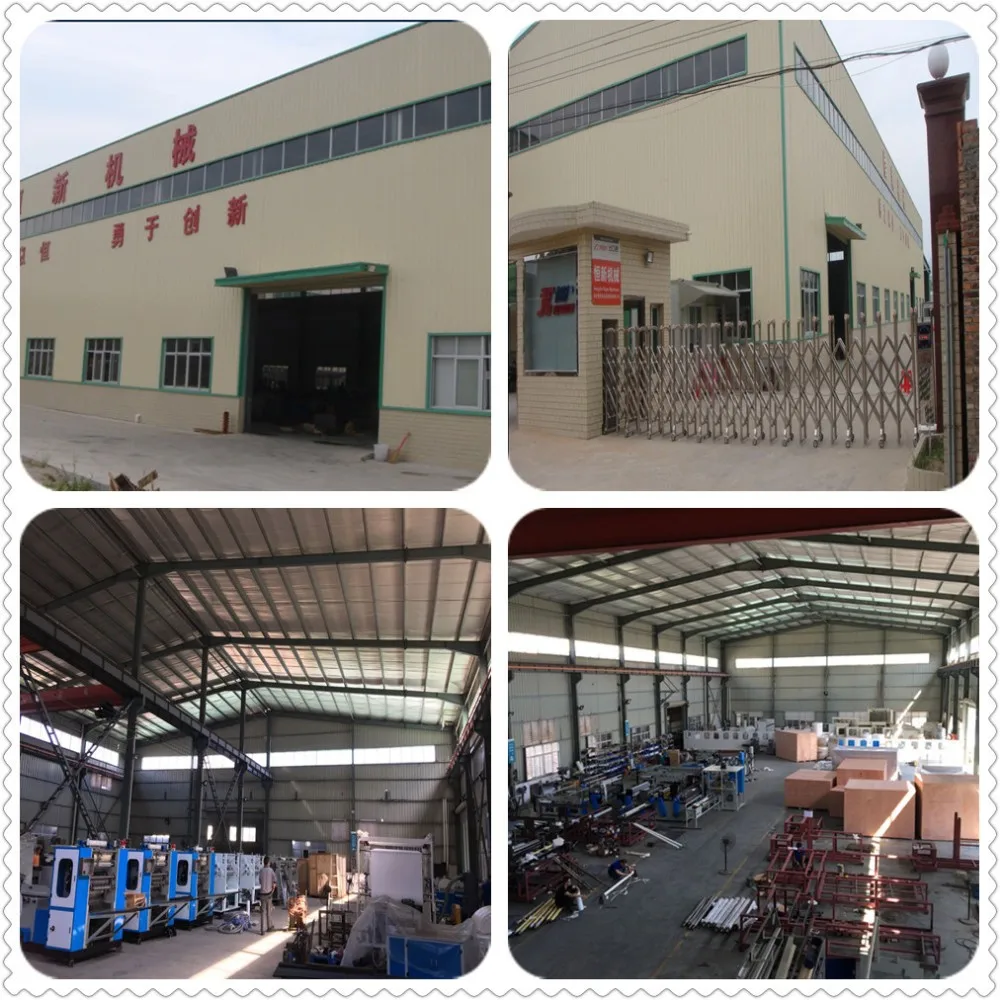

Factory&Exhibition



High Speed Automatic Maxi Roll Paper Rewinding Machine Contact us:
