Product Application

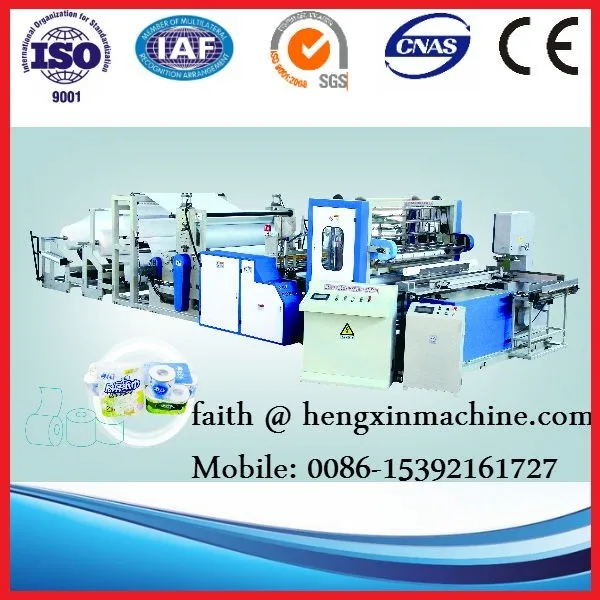

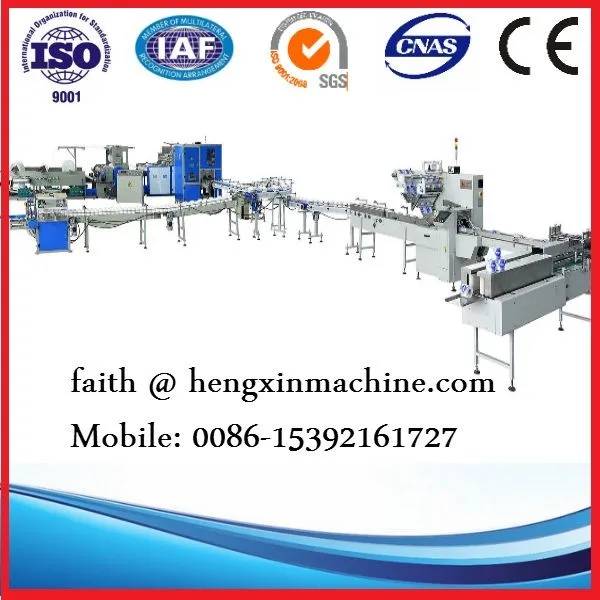

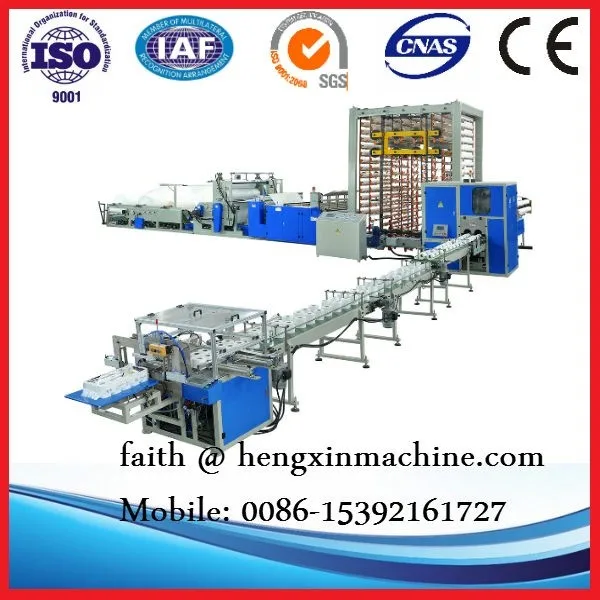

New model Fully Automatic Toilet Paper and Kitchen Towel Production Line with Colorful Lamination are consist of full automatic rewinding machine,accumulator,automatic band saw .Automatic loading material to finished cutting output ,whole line cooperate smoothly ,stable performance, all automatic by machine ,more save manpower, and reduce the labor intensity and improve production efficiency . It’s a best choice for production toilet paper products.
Main Technical Parameters:
Jumbo Roll Max Width 1750mm
1750mm (Other size can be specified)
Jumbo Roll Diameter Φ1100mm
Jumbo Roll Inner Diameter 3inches(76.2mm)
Finish Product Diameter Φ80-φ140mm
Finish Product Inner Diameter φ38-φ48mm
Perforation Distance 100-150mm
Production Speed 0-180m/min
Parameter Set HMI, Touch Screen
Pneumatic System 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa（Provide by user）
Total Power 7.5-15KW
(depends on model and configuration)
Unwind Stands 2 or 3 Stands
Unwinding Transmission Frequency Stepless Speed Regulation
Rewinding Unit With Core or Coreless
Dimension 7800X3000X1720mm
Weight 3500~4500kg
Main Features
1．Automatic core feeding system, automatic log pusher after rewinding, then rewind the new log again.
2． Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

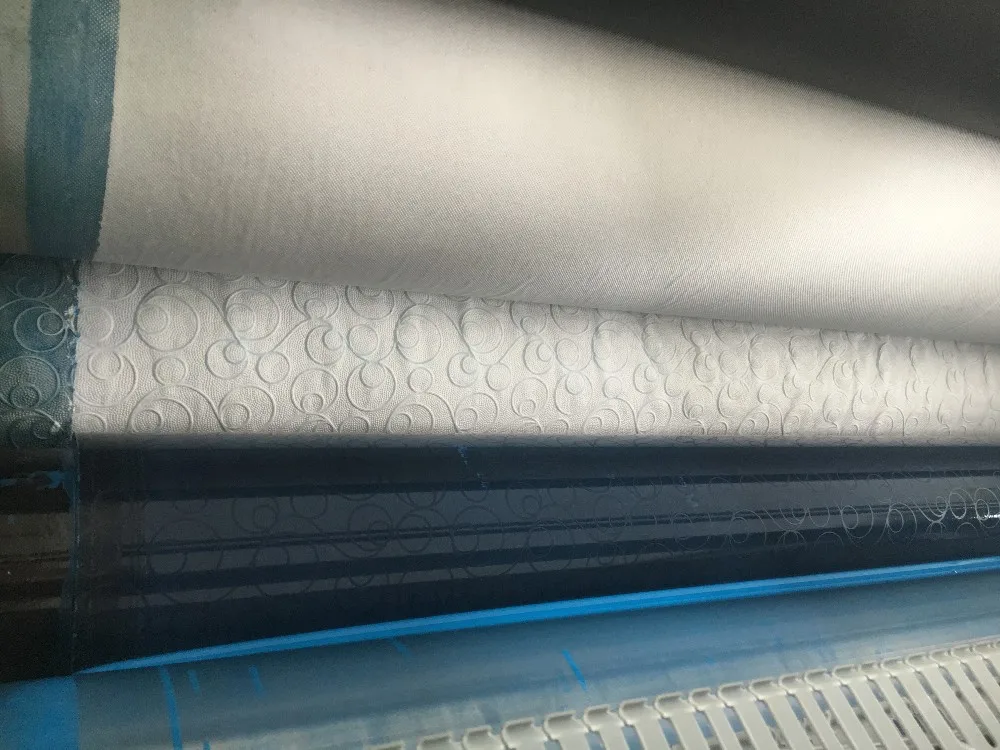

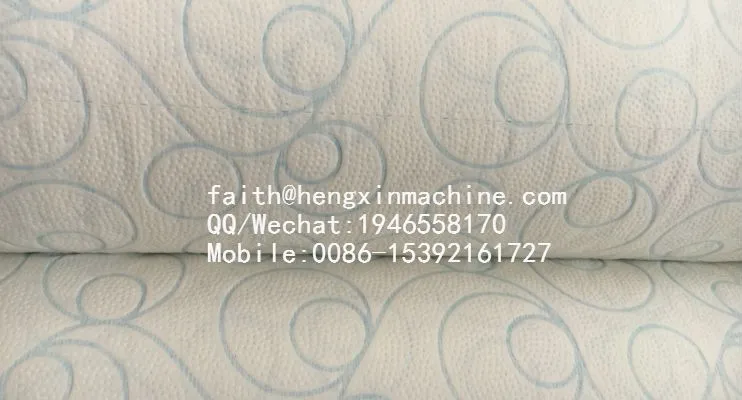

6．Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns
7. Adopt jogging switches for wearing the paper, easy and safe to operate.
Machine Parts
Part 1

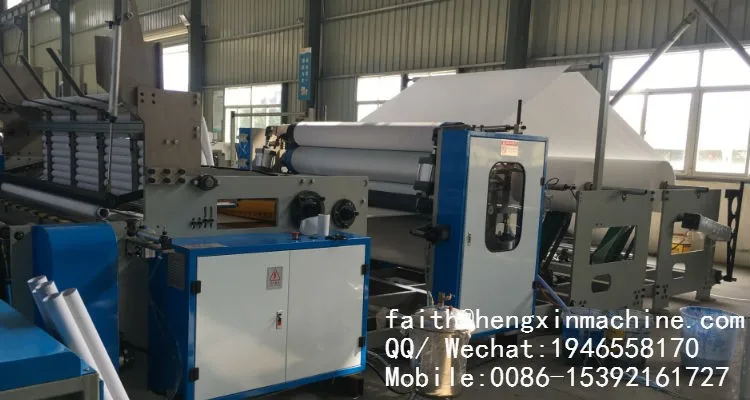

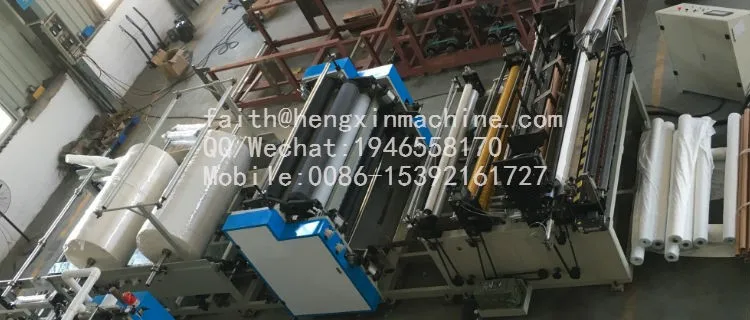

Toilet Paper and Rewinding Machine
After rewinding---embossment patterns--edge line embossment -colorful lamination --perforation ,rewinding into small rolls,you will get the logs

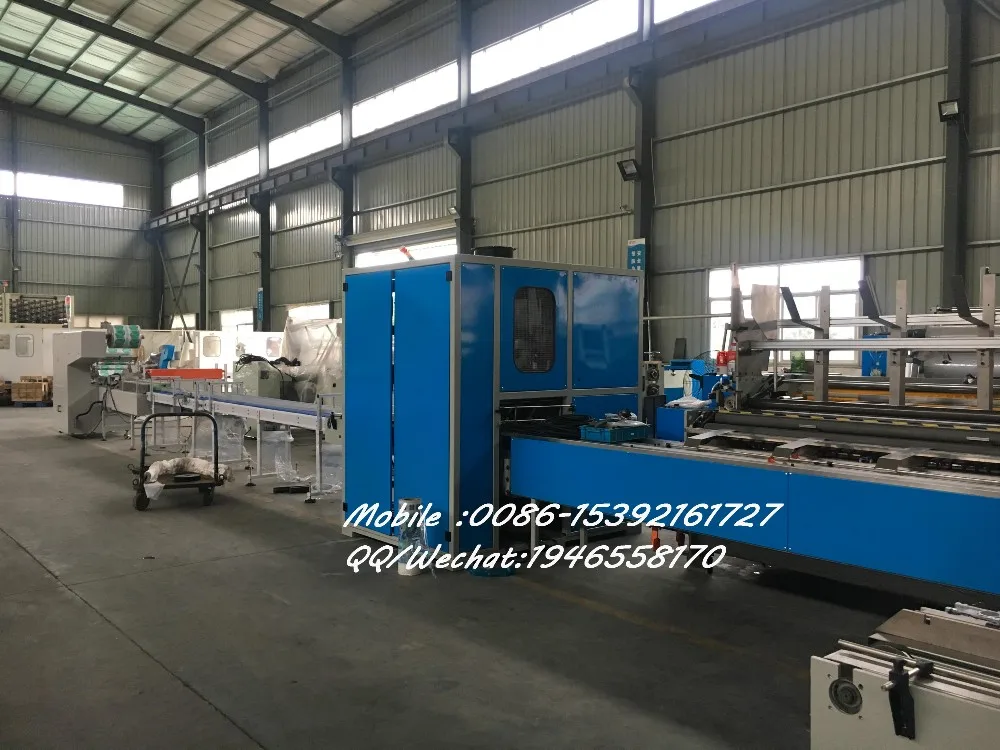

Log Saw Machine
HX-DHX-150 Double Channel Log Saw Machine is used for cutting the toilet paper roller and kitchen towel paper roller, it’s with high automation and efficient. Adopts advanced servo driving system, frequency conversion speed regulating, PLC control and touching screen operation.
Part 3

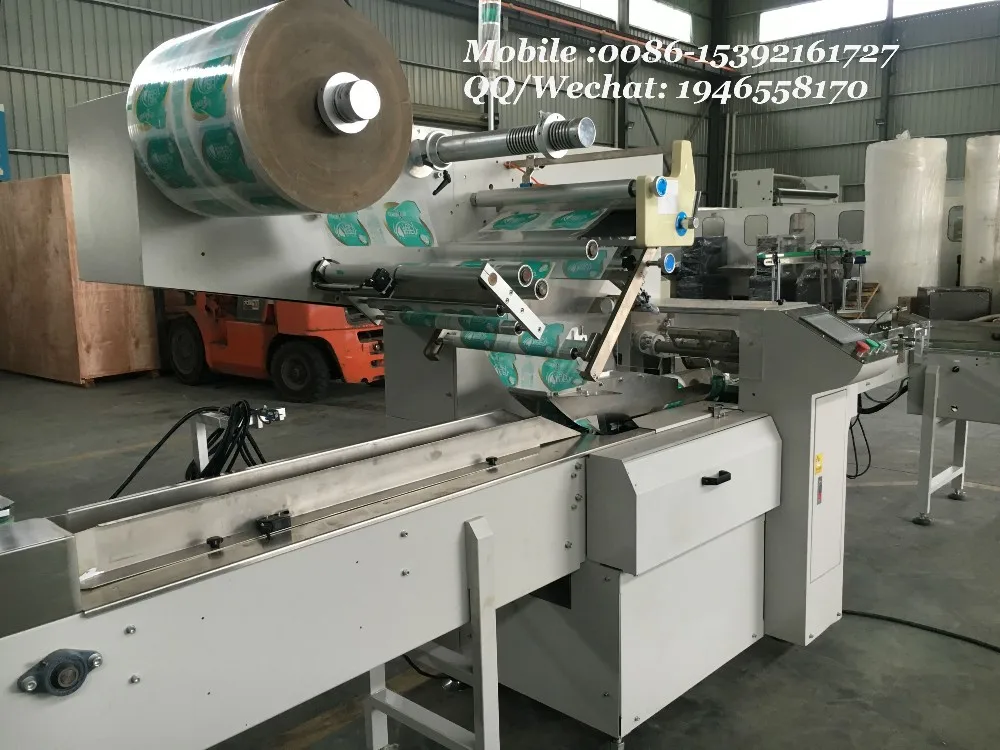

Single Roll Packing Machine
with both side heating.
production speed:60-100packs/min
Part 4

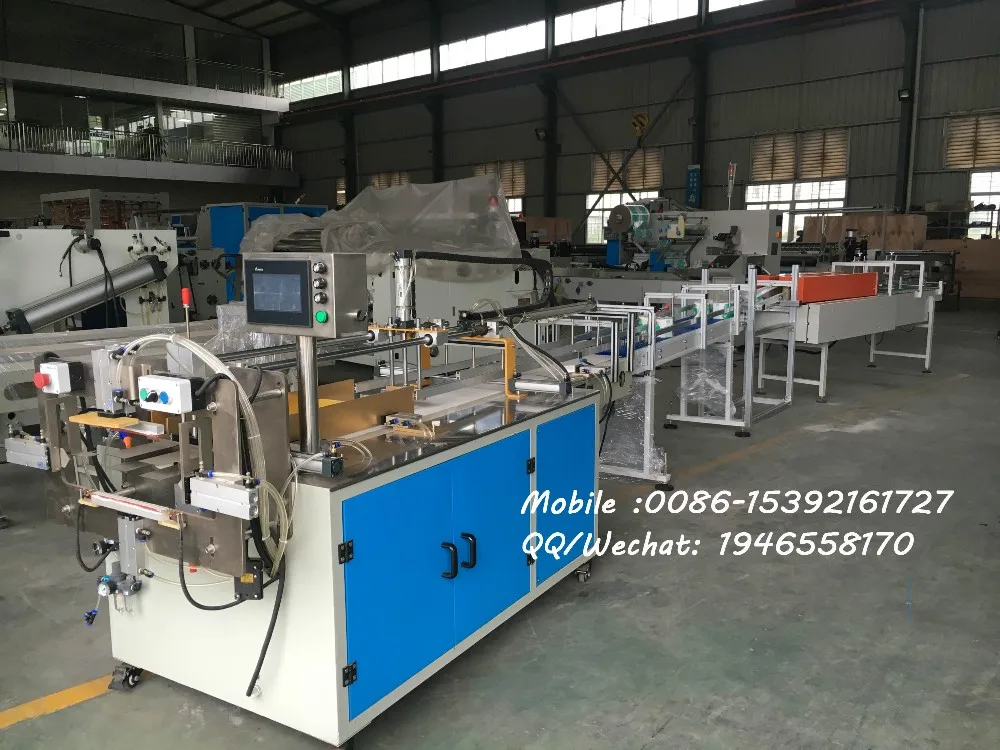

Mutipler Rolls Packing Machine
6-8-10-12rolls packing per bag .
other packing way can be ordered
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
