Quick Details

  • Condition: New
  • Product Type: Toilet Tissue
  • Processing Type: Winding Machine
  • Place of Origin: Fujian, China (Mainland)
  • Brand Name: Full automatic toilet paper and kitchen towel production line
  • Model Number: HX-GS-1575
  • Voltage: 380V
  • Power(W): 50
  • Dimension(L*W*H): 6*3*1.7(M)
  • Weight: 8T, 3T
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Color: sky blue
  • Operate speed: 0-160m/min
  • Count: Automatically
  • Embossing unit: Two sets steel to rubber
  • Programming controller: PLC
  • Data setting: HMI

Packaging & Delivery

Packaging Details Wooden Case
Delivery Time 60days

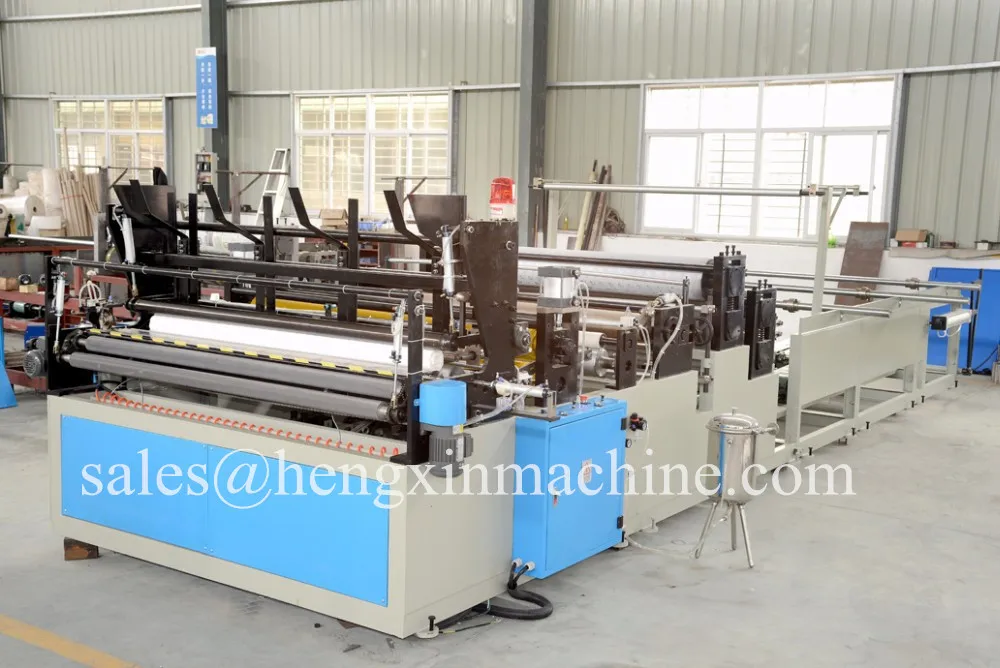

                             HX-GS-1575 Full automatic toilet paper and kitchen towel production line



                                                                                       Toilet Paper Roll Sample

                                                                                    Embossing Pattern

Functions and Features

1.Automatic core feeding system, automatic log pusher after rewinding, then rewind the new log again.

2. Automatic edge-trimming, core feeding; auto edge trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

6.Embossment Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns

7. Adopt jogging switches for wearing the paper, easy and safe to operate.



The Main Technical Parameters

Jumbo Roll Max Width

1750mm (Other size can be specified)

Jumbo Roll Diameter

Φ1100mm

Jumbo Roll Inner Diameter

3inches(76.2mm)

Finish Product Diameter

Φ80-φ140mm

Finish Product Inner Diameter

φ38-φ48mm

Perforation Distance

100-150mm

Production Speed

0-180m/min

Parameter Set

HMI, Touch Screen

Pneumatic System

3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)

Total Power

7.5-15KW(depends on model and configuration)

Unwind Stands

2 or 3 Stands

Unwinding Transmission

Frequency Stepless Speed Regulation

Rewinding Unit

With Core or Coreless

Dimension

7800X3000X1720mm

Weight

3500~4500kg



Other Model

model

1575

1760

2200

2500

2800

Max.parent roll width(mm)

1750

2000

2150

2400

2700

Max.parent roll diameter

Standard diameter1100mm unless otherwise specified

Qty of unwind stand

3 stands (please specify when order)

core inner dia.of parent roll

Standarddiameter3”(76.2mm) unless otherwise specified

Data setting

HMI

Programming controller

PLC

Operate speed

0-160m/min

outer dia.of finished log

diameter 90-135mm

core inner dia.of finished log

diameter 25-50m

diameter of finished log control

Electronic/Air control

Mechanical driving

Driving by Stepless gear box

Air -system

3HP air compressor, min. pressure 5kg/cm2pa ( provide by user)

Main driving

Frequency conversion speed regulation 9KW 380V,50HZ

Embossing unit

Two sets steel to rubber

Dimensions

6x3x1.7 (length x width x height)(m)

weight

3T





Packing



Workshop
