Full-automatic Interfold Facial Tissue Paper Machine (6 lanes)

FOB Reference Price:Get Latest Price
US $9,800-39,800 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
60 Set/Sets per Month
Port:
xiamen
Overview
Quick Details
Condition:
New
Type:
Paper Folding Machine, Facial tissue making machine
Computerized:
Yes
Place of Origin:
Fujian, China (Mainland)
Brand Name:
HX
Model Number:
HX-CS-190/6L facial tissue machine with color glue lamination
Voltage:
380V
Power(W):
15kw (depends on model and configuration)
Dimension(L*W*H):
7950X3000X1860mm, 7950X3000X1860mm
Weight:
6T
Certification:
CE Certificate
Warranty:
Life Technician Support, Lifetime technical support
After-sales Service Provided:
Engineers available to service machinery overseas
Production speed:
3000-4200pcs/min
Product open size:
190x(130-210)mm (LXW)
Product folded size:
95x(130-210)mm
Embossing unit:
Steel to rubber , steel to steel
Jumbo roll width:
1400mm
Jumbo roll inner diameter:
76.2mm
Lamination:
Color glue lamination
Packaging & Delivery
Packaging Details
Full-automatic Interfold Facial Tissue Paper Machine (6 lanes).Spray the anti-rusted oil first and then wrapped the plastic bag last packaging wooden case.
Delivery Time
40-60days

Full-automatic Interfold Facial Tissue Paper Machine (6 lanes)





Function and Features

1.Back stand system:

(1) Four parent roll shafts; in front and back each two parent roll shafts, convenient glue compound.

(2) Equipped with devices which can adjust the position of the parent rolls;

(3) Tension control system can adjust the tension of the parent paper;

(4) Pneumatic parent roll loading system;

(5) The unwinding belt is adjusted pneumatically, when the parent paper is used up the machine will slow down to stop;

(6) All the pneumatic device’s air press are adjustable;

2.Embossing unit;

(1) Steel to rubber embossing ( four sets);

(2) The steel rollers were plated with hard chrome, the embossing is very clear;

(3) Tension adjusting device;

(4) Broken, winding can effect the automatic stop function;

3.Control section;

(1) Automatic counting system;

(2) Equipped with inverter speed control;

(3) Power supply: AC 380V/50Hz;

(4)Equipped with vacuum pump: 11 KW 380V/50Hz

4.Two layers connected with lamination, glue unit for lamination, automatic gluing composite.



 Tissue folded size:95X(120-210)±2mm
Tissue unfold size:190X(120-210)±2mm
Jumbo roll width:1400mm
Jumbo roll diameter:1100mm-1500mm
Jumbo roll inner diameter:76.2mm
Speed:60-100m/min
Jumbo roll raw material:13-17g
Embossing unit:steel to rubber,steel to wool,steel to steel(can be customized)
Edge embossing:steel to steel edge embossing,independent pneumatic regulation
Slitting unit:Pneumatic slitting
Main motor:5.5KW
Jumbo roll motor:1.1KW(2 set)
Vacuum suction unit:Fan 15KW(Taiwan roots blower)
3HP air compressor min pressure 5kg/cm 2PA
Timing belt
7950X3000X1860mm
6T

Full-automatic Interfold Facial Tissue Paper Machine (6 lanes) working flow:



Full-automatic Interfold Facial Tissue Paper Machine (6 lanes) Embossing Design

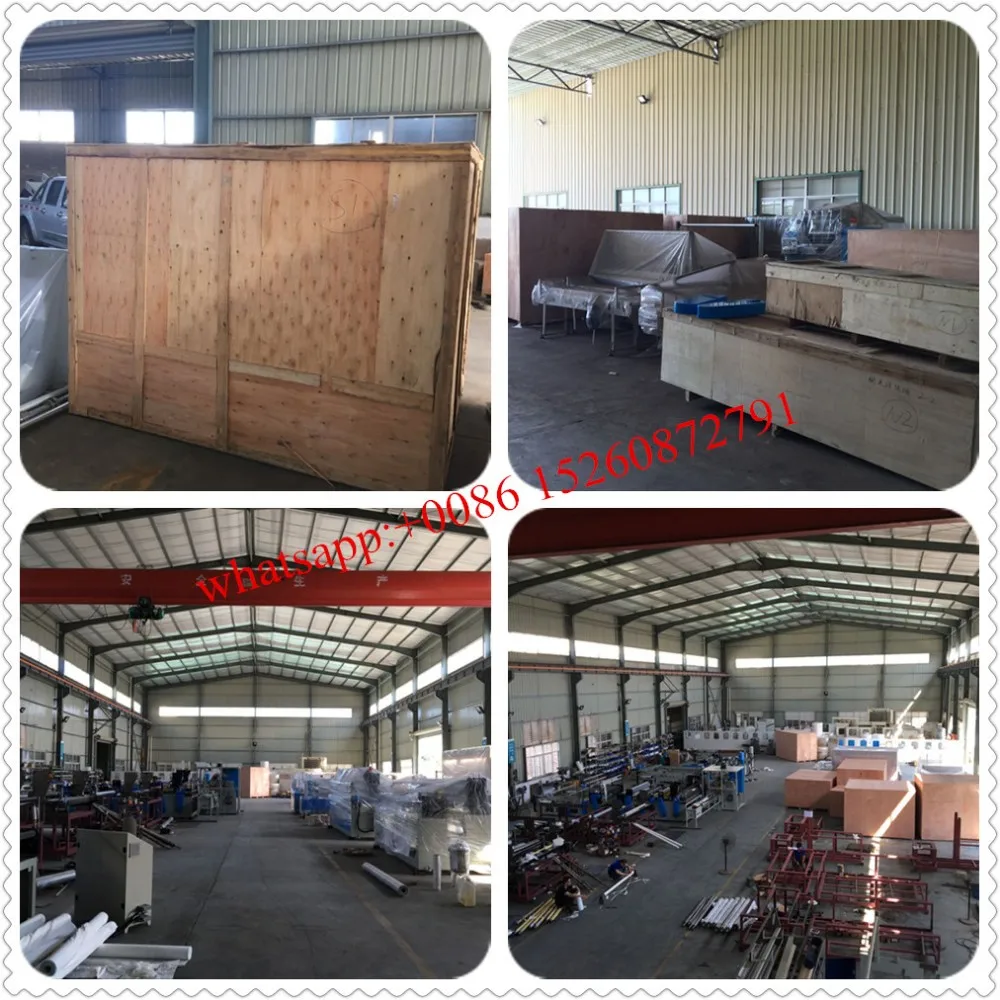

Full-automatic Interfold Facial Tissue Paper Machine (6 lanes) package
Full-automatic Interfold Facial Tissue Paper Machine (6 lanes) Our Factory&Exhibition

Full-automatic Interfold Facial Tissue Paper Machine (6 lanes) Contact Us:
